68.00 Euro
0 Kutulu Üründür.

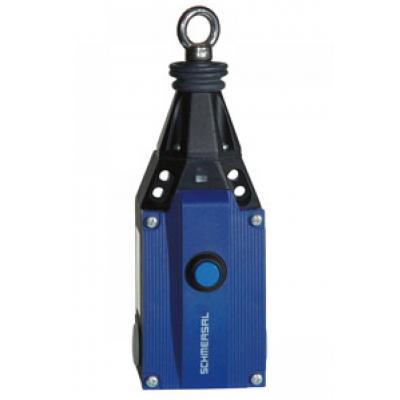

Ordering details | |
Product type description | ZQ 900-11 - Ordering suffix |
Article number | 101184327 |
Strobe lamp | 4030661332741 |
eCl@ss | 27-37-12-90 |
Approval | |
Approval | |
Classification | |
Standards | EN ISO 13849-1 |
B10d Normally-closed contact (NC) | 100.000 |
Mission time | 20 Years |
notice | |
Global Properties | |
Permanent light | ZQ 900 |
Standards | IEC/EN 60947-5-1, IEC/EN 60947-5-5, EN ISO 13850 |
Compliance with the Directives (Y/N) | Yes |
Materials | |
- Material of the housings | zinc die-cast |
- Material of the cover | Plastic, thermoplastic |
- Material of the contacts | Silver |
Housing coating | painted |
Weight | 1300 |
Emergency-Stop button (Y/N) | No |
Mechanical data | |
Design of electrical connection | Screw connection |
Cable section | |
- Min. Cable section | 0,75 |
- Max. Cable section | 2.5 |
Mechanical life | > 1.000.000 operations |
notice | All indications about the cable section are including the conductor ferrules. |
Indicator lamp (Y/N) | optional |
Length of wire | 75 |
Ambient conditions | |
Ambient temperature | |
- Min. environmental temperature | −25 |
- Max. environmental temperature | +70 |
Protection class | IP67 to IEC/EN 60529 |
Electrical data | |
Design of control element | Normally open contact (NO), Opener (NC) |
Switching principle | Snap switch element |
Number of auxiliary contacts | 1 |
Number of safety contacts | 1 |
Rated impulse withstand voltage | 6 |
Rated insulation voltage | 500 |
Thermal test current | 6 A |
Utilisation category | AC-15: 230 V / 4 A, DC-13: 24 V / 1 A |
Max. fuse rating | 6 A gG D-fuse |
Dimensions | |
Dimensions of the sensor | |
- Width of sensor | 71.5 |
- Height of sensor | 220.3 up 236.3 |
- Length of sensor | 69.7 |
notice | |
For lengths of over 10 m, intermediate wire supports must be installed every 3 to 5 m. | |
Recommended cable lengths for pull-wire Emergency-Stop switches in relation to the range of ambient temperature. | |
The screwed G24-M20 indicator lamp must be ordered separately, see accessories. | |
As the thimbles are subject to deformation in case of wire pull, the wire should be pulled several times after fitting. After that, the wire must be re-tensioned using the eyebolt or the tensioner. | |
Diagram | |
Note Diagram positive break NC contact active no active Normally-open contact Normally-closed contact |
|
Ordering suffix | |
The applicable ordering suffix is added at the end of the part number of the safety switch. Order example: ZQ 900-11-2828 |
|
...-2828 | reduced spring force ("65 N) max. Length of wire 10 m |
